Description

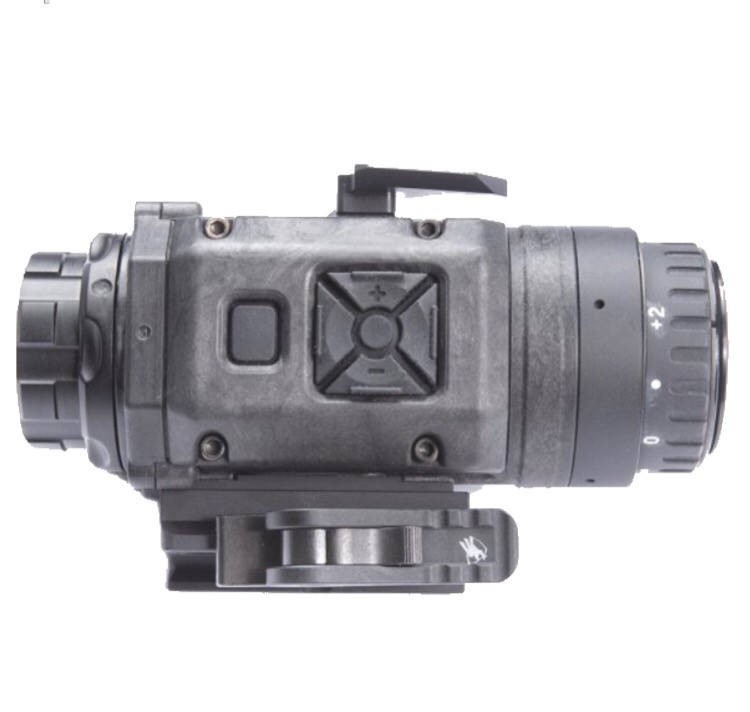

NOX Thermal Monocular

• BAE 12-micron core
• 60Hz refresh
• 640×480 screen
• Available in 18mm or 35mm lens
• User-configured for the right or left eye
• Can be powered with an external USB battery bank via the provided USB-C cable
• Five control buttons for immediate access to calibration, polarity, zoom, photo, power
• User-friendly menu system for zeroing and/or customization
• Standalone calibration button

The Nox is a small 12-micron 60Hz fully functional thermal weapon sight that can serve double duty as a helmet mounted monocular. This unique product is proudly designed and built in the USA, using the best commercially available BAE thermal imaging cores and the highest grade optical components. Nox is available in an 18mm or 35mm lens configuration, allowing for the best magnification and field of view combination, depending on your environment.

Nox can be user-configured for the right or left eye, dual-mounted with our Integrated Components Night Vision Helmet Mount D-14 Dual PVS-14 Mounting System™

with another Nox, or with a night vision monocular, such as PVS-14. Weapon and/or dovetail mounts are removable to reduce the size and weight of the unit to help achieve optimal NOX configuration.

If you only want to run one NOX, helmet mount it with our MOD Armory Thermal J Arm Adapter in Dovetail Shoe or Bayonet Interface

Power Supply Options
Each NOX ships with a standard CR123 battery and a rechargeable 18650 battery with charger battery. Depending on environment temperature, you can expect up to an hour and a half of run time with a standard CR123 battery and from four to seven hours+ on the rechargeable 18650 battery. For the ultimate power solution, Nox can be powered with an external USB battery bank via the provided USB-C cable.

User Interface
NOX has five highly ergonomic control buttons that permit immediate access to the frequently used functions (calibration, polarity, zoom, photo, power) and allow access to the user-friendly menu system for zeroing and/or customization of device parameters. This includes a standalone calibration button that provides the user with the ability to calibrate the unit with one hand in under one second.
