Description

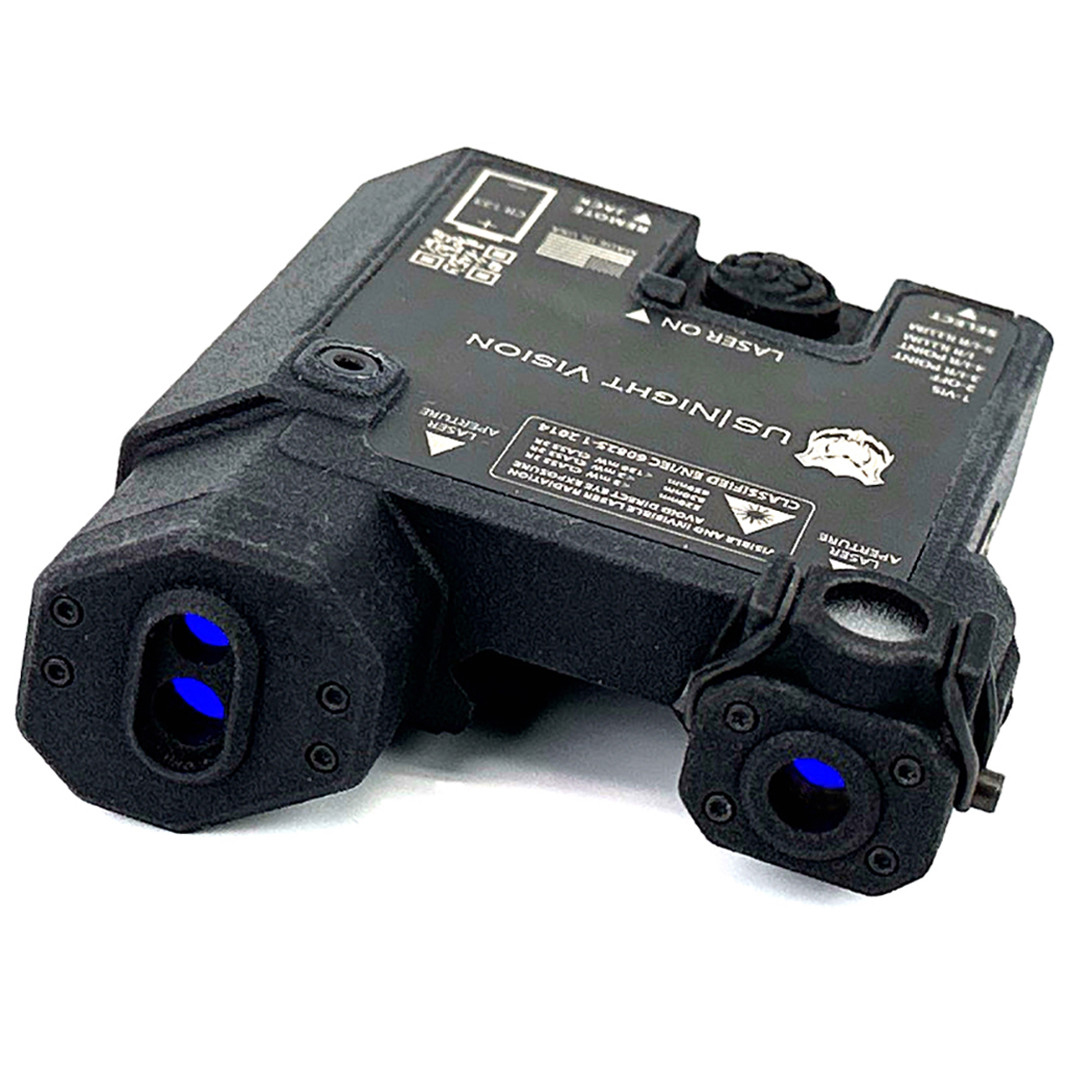

Designate IR-V Three Beam Laser – Green Visible / IR Laser / VCSEL IR Illuminator

Introducing the Designate IR-V, the smallest and lightest three-beam tactical rifle laser on the market today. Proudly made in the USA by 3EIR, this laser is constructed from durable synthetic nylon, ensuring it withstands recoil and performs reliably in all weather conditions.

Key Features
– Green Visible Laser / Infrared Laser / VCSEL IR Illuminator: Offers exceptional illumination with superior distance and beam quality.
– ARISAKA Defense Ambidextrous Fire Button: New ergonomic design for minimal drag and ease of use.
– ARISAKA Defense Aluminum Mounting Plate: Robust and lightweight mounting solution.
– CQB IR Diffuser Bikini Cover: Perfect for close-up or indoor work, providing diffused illumination when long-range is unnecessary.

User Benefits
– Set-It, Forget-It Zero: Zero the visible laser once, and both laser sights remain precisely co-witnessed for accuracy.
– Compact Footprint: Lies below the weapon’s line of sight, enabling effortless switch to iron sights.
– Affordable and Competitive: Comparable products cost over $3000, but the DesignateIR-V offers similar options at a competitive price.

Specifications
– Laser Types: Green Visible Laser, Infrared Laser, VCSEL IR Illuminator with Diffuser Filter
– Innovative Ambidextrous Fire Button Placement
– MIL-STD Crane Remote Switch Connector
– Optional Remote Pressure Switch – available here
– ARISAKA Defense 1913 Picatinny Rail Mount
– Momentary/Constant Fire Control Button
– Easy-to-Use Selector Switch (Vis/Off/IR/IR & Illuminator)
– Intuitive “User Only” Activation Light
– Adjustable Windage/Elevation

Dimensions and Weight
– Size: (L) 3.8″ x (W) 2.9″ x (H) 0.5″
– Weight (with Battery): 6.3 oz

Power and Battery
– Battery: (1) CR123
– Battery Life: Over 5 hours

Environmental and Warranty
– Environmental Rating: IP68
– Warranty: 2 years

Laser Details
– Visible Laser (Green):
– Output Power: > 5.0 mW Class 3R
– Beam Divergence: 0.5 mrad
– Wavelength: 520 nm
– Range: > 50 m Daylight

– IR Laser (Infrared):
– Output Power: > 2.5 mW Class 3R
– Beam Divergence: 0.5 mrad
– Wavelength: 830 nm
– Range: > 1000 m

– VCSEL Illuminator (Infrared):
– Output Power: > 130 mW Class 3R
– Beam Divergence: 3 Degree
– Wavelength: 850 nm
– Range: > 300 m

Experience the advanced technology and precision of the DesignateIR-V, a must-have for tactical professionals and enthusiasts alike.
